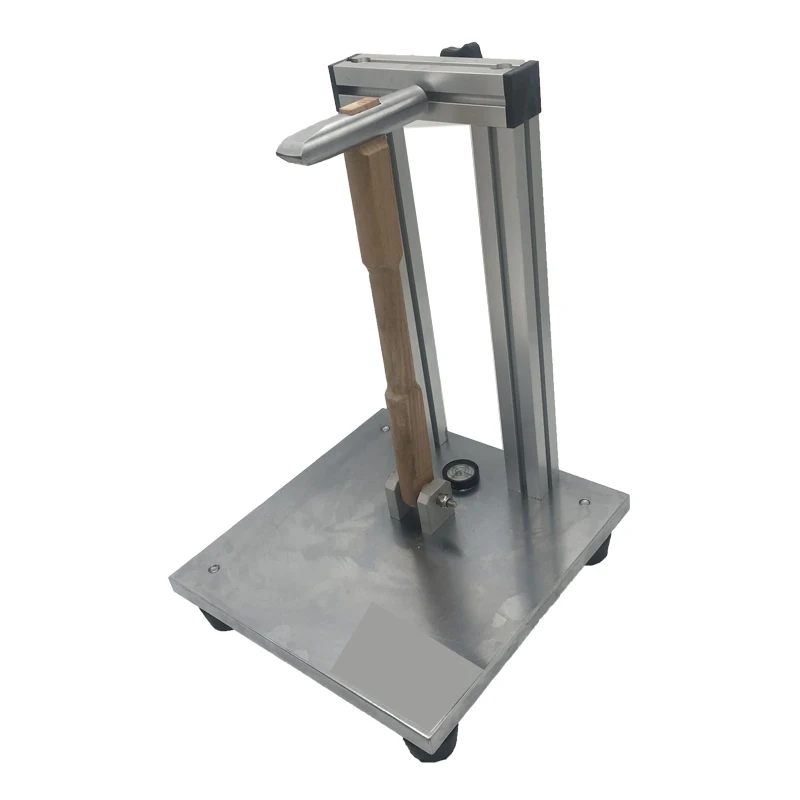

Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester

Name: Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester
Brand: Lonroy
Price: 1 USD

Best Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester wholesale

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Hammer weight : 210g±1g

Hammer material : 45 steel

Hardness level : HS40 or above

Vertical height : 300mm±1mm

Hammer handle material : Oak

Base plate dimensions : 250x250x15mm

Base plate feature : Horizontal bubble

Strike interval : 4mm

Minimum strike distance : 10mm from edges

Protection class : IP65

Voltage : 220 V

Test standard : GB/T2694-2010, YDT757

Strike points : 5 parallel points

Hammer orientation : Perpendicular to base

Test method : Free fall hammer

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester

Introduction

1.The test device conforms to the drop hammer test method of GB/T2694-2010 and YDT757 standards, and is suitable for the adhesion test of hot dip galvanized layer, which uses the hammer head free drop to test whether the galvanized layer meets the standard. This product is suitable for product quality inspection and control by similar manufacturers and quality inspection departments of iron towers.

2, galvanized layer adhesion hammer test device use method
Adjust the device according to the table level so that it is horizontal, adjust the sample so that the striking point is not less than 10mm from the side, Angle and end of the sample, the hammer head faces the center of the bench, the hammer handle is perpendicular to the base plane and then falls freely, and the 5 points are struck parallel at an interval of 4mm. Check whether the surface state of the galvanized layer meets the standard requirements, and the strike shall not be repeated
3.maintenance and maintenance
The whole unit has been treated to prevent rust, dust and moisture.
Keep the end face of the support smooth and smooth.

Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester

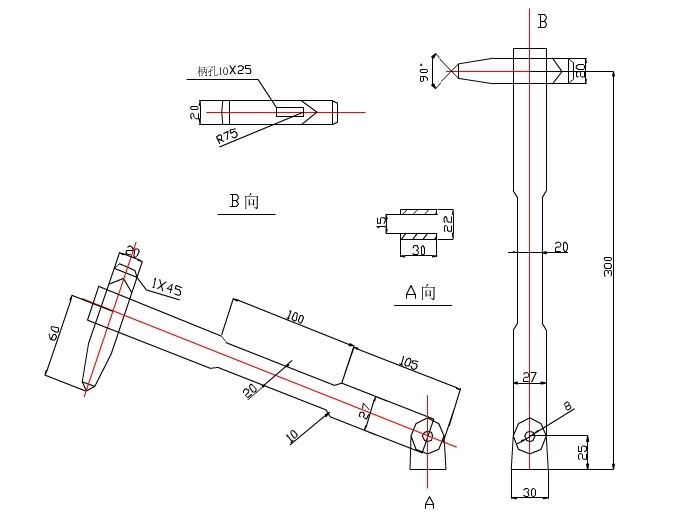

Technical specification

Hammer weight	210g±1g, 45 steel, hardened to HS40 or above
Vertical height from center line of hammer head to base surface	300mm±1mm
Hammer handle material	Oak
The bottom plate is 250x250x15mm and is configured with a horizontal bubble. The level can be adjusted
