IP56 Protection DC Load Box with 220V/380V Voltage and 1 Year Warranty for High Reliability Performance Testing

Name: IP56 Protection DC Load Box with 220V380V Voltage and 1 Year Warranty for High Reliability Performance Testing
Brand: Lonroy
Price: 1 USD

Best IP56 Protection DC Load Box with 220V/380V Voltage and 1 Year Warranty for High Reliability Performance Testing wholesale

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Protection Class : IP56

Voltage : 220 V, 380 V

Grading : 1W,2W,5W...to 1000KW

Load accuracy : Resistance ±3%

Rated voltage : DC24V, 28V, 30V... up to 1000V

Environmental temperature : -20°C ~ +55°C

Cooling method : Strong fan air-cooling

Load type : Resistive load

Load control : Local manual + remote automatic

Load protection : High-temperature, fan, emergency stop, heat dissipation, short-circuit, overcurrent

Electrical parameter measurement : Displays current and voltage, uploads data

Power output : Segmented control

Display : External liquid crystal

Parallel capability : Multiple devices in parallel

Material : Electrical components

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

DC Load Box High Reliability Switches Aging Experiment Performance Testing Machine Contactor Daily Maintenance Tester

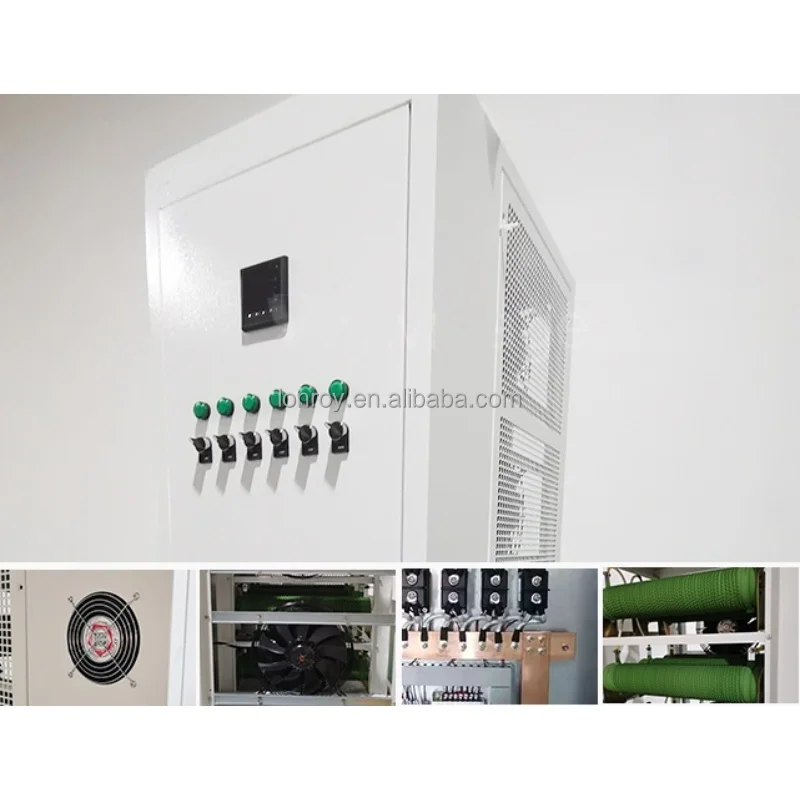

Product Description

Introduction

The DC load box is applied in the daily maintenance tests, project acceptance and factory inspection tests of various generators and UPS power supplies. At the same time, it can assist in completing the performance tests and aging experiments of various switches and contactors. The load box is designed innovatively, with strong functions, small size, and high reliability. The digital display is clear, the operation is simple, and the intelligence level is high. After parameter setting, it automatically controls constant current to complete the capacity test of the battery group. The power consumption part adopts electrical components produced by our own intellectual property rights, with large power, no open flame, safety and long service life.

Advantage

It is equipped with a pure resistive load. The power output is controlled in a segmented manner, allowing for various combinations to simulate different power loads. This enables it to operate more stably without any overheating or discoloration. It is equipped with a forced cooling fan and self-protection functions to prevent overheating and burning out in case of fan failure. It adopts a modular structure, making the operation simple and maintenance convenient. An external liquid crystal display is provided, allowing real-time monitoring and control of parameters such as power, voltage, and current. This facilitates users to view and record the data. In the future, multiple devices can be used in parallel to meet the basic requirements for large current applications.

DC Load Box High Reliability Switches Aging Experiment Performance Testing Machine Contactor Daily Maintenance Tester

Technical Specification

Grading	1W,2W,5W….to 1000KW
Load accuracy	Resistance ±3%
Electrical parameter measurement	It can display the current and voltage of each group of loads locally, and upload the data to the upper computer.
Cooling method	Strong fan air-cooling, with standard upward air outlet.
Load type	Resistive load
Rated voltage	DC24V, 28V, 30V... up to 1000V
Load control method	Local manual control + remote automatic control
Load protection	High-temperature protection, fan protection, emergency stop protection, heat dissipation protection, short-circuit protection, overcurrent protection
Environmental temperature	-20°C ~ +55°C
