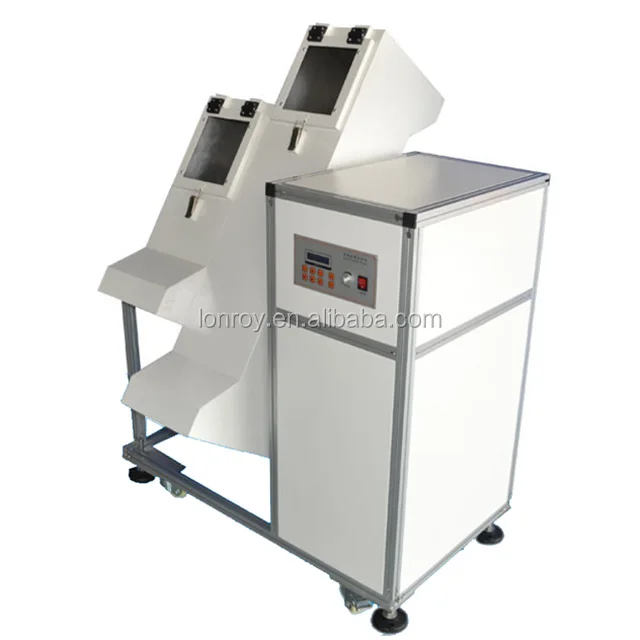

Tumble Barrel Roll Dropping Tester Double Drum Drop Testing Machine for Mobile Phone

Name: Tumble Barrel Roll Dropping Tester Double Drum Drop Testing Machine for Mobile Phone
Brand: LONROY
Price: 1 USD

Best Tumble Barrel Roll Dropping Tester Double Drum Drop Testing Machine for Mobile Phone wholesale

Brand Name : LONROY

Place of Origin : Guangdong, China

Model Number : LR-220

MOQ : 1

Specimen weight : 5kg(max)

Drop height : 500mm/1000mm

Rotary speed : 5-20 times/min

Test times : 1-999999 times(set)

Model : LR-220

Barrel width : 275mm/350mm

Size : 750*450*1050mm

Weight : 65kg

Power supply : AC220V or specify

Steel plate thickness : 3mm

Hardwood thickness : 19mm

Revolutions per minute : 5

Falls per minute : 10

Barrel material : Clear acrylic

Chamber access : Large clear acrylic door

Contact Now

Tumble barrel roll dropping tester Double drum drop testing machine for mobile phone

Application

The Tumbling Barrel Test simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.

The Tumbling Barrel Test is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from aheight of 500mm on to steel plate that is 3mm thickand backed by 19mm thick hardwood.

Tumble barrel roll dropping tester Double drum drop testing machine for mobile phone

Specification

Tumbling Barrel Tester is made to the specifications set forth in major international standards.

Tumbling Barrel Tester

employs a large clear acrylic access door for easy viewing and access to the chamber. Models are offered with a standard barrel with a drop height of 500mm. Barrels of other sizes are available as well for standards such as IEC 60312 or DIN 60312 where a drop height of 800mm (or 1000mm)is required.

Standard

IEC60068-2-32 GB/T2324.8

Tumble barrel roll dropping tester Double drum drop testing machine for mobile phone

Parameters

Product name	Tumble barrel roll dropping tester , tumble barrel tester
Specimen weight	5kg(max)
Drop height	500mm/1000mm
Barrel width	275mm/350mm
Rotary speed	5-20 times/min
Test times	1-999999 times(set)
Size	(WDH) 7504501050mm
Weight	65kg
Power supply	AC220V or specify
