Drop Testing Machine Battery Free Drop Test Machine for Small Electronic Product Mobile Phone and Headphone Drop Tester
Premium Products
Drop Testing Machine Battery Free Drop Test Machine for Small Electronic Product Mobile Phone and Headphone Drop Tester
1
2
3
4
5
6
Brand Name :LONROY
Place of Origin :Guangdong, China
MOQ :1
Power :1.25kw
Voltage :220 V
Drop height :300 to 1500 mm
Max test weight :2 kg
Test piece dimensions :200 × 100 mm
Drop height display :1 mm
Drop floor materials :A3 steel plate, marble plate, wooden plate
Test drop points :Edge, corner, face
Drop method :Pneumatic drop
Display method :Electric lifting
Operating air pressure :< 1 MPa
Motor power :200 W
Power supply :AC 220 V, 50 Hz
Machine dimensions :700 × 900 × 2200 mm
Machine weight :190 kg
Contact Now
Drop Testing Machine Battery Free Drop Test Machine for Small Electronic Product Mobile Phone and Headphone Drop Tester
Introduction
The battery drop test machine is suitable for 3C portable batteries, single cell batteries, cylindrical batteries, pouch batteries, square batteries, mobile phones, walkie-talkies, electronic dictionaries, intercoms, CD/MD/MP3 players, and other small consumer electronic products and components for free fall testing.
Product Features

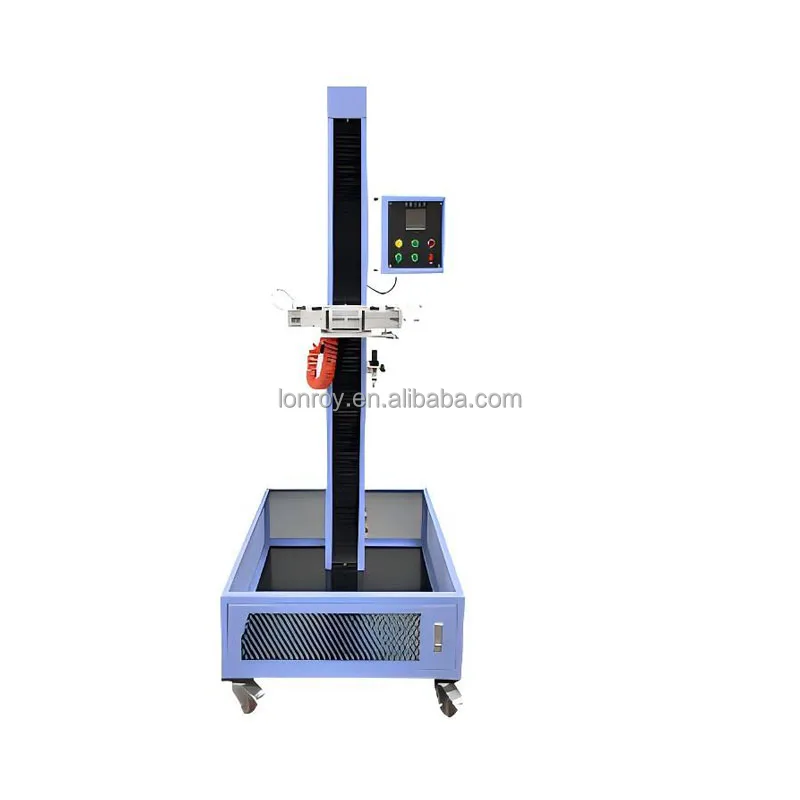

This machine adopts a pneumatic structure. The test piece is placed in a dedicated fixture (with adjustable stroke) and clamped. When the drop button is pressed, the cylinder releases, and the test piece undergoes a free fall test. The drop height can be adjusted up and down, and it is equipped with a height scale to determine the drop height of the test piece. Various drop floor materials are available for selection, which can meet different test standards.
Drop Testing Machine Battery Free Drop Test Machine for Small Electronic Product Mobile Phone and Headphone Drop Tester
Main technical parameters
Model
LR-200B
Drop height
Adjustable from 300 to 1500 mm
Maximum allowed weight of the test piece
2 kg
Allowed dimensions of the test piece
200 × 100 mm (width × depth)
Drop height display
Minimum value of 1 mm
Drop floor materials
A3 steel plate, marble plate, wooden plate
Test drop points
Edge, corner, face
Drop method
Pneumatic drop
Display Method
Electric lifting
Operating air pressure
< 1 MPa
Motor
200 W
Power supply
AC 220 V, 50 Hz
Machine dimensions
Approximately 700 × 900 × 2200 mm
Machine weight
Approximately 190 kg
