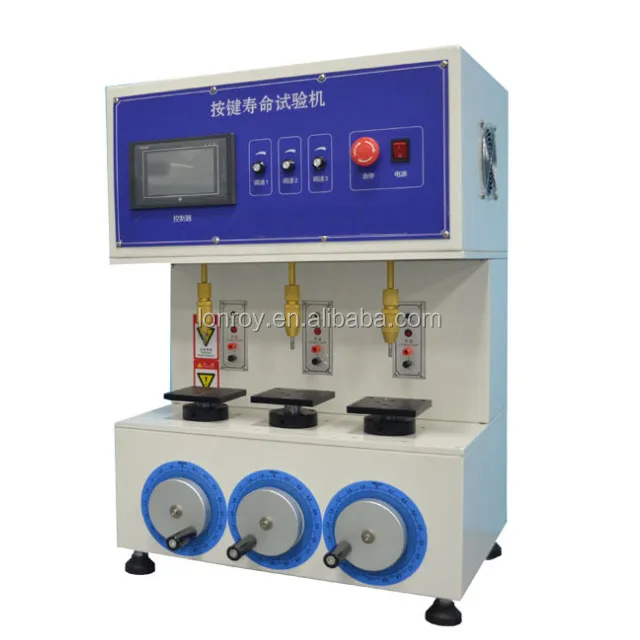

Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine

DONGGUAN LONROY EQUIPMENT CO LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Voltage : 220 V

Power supply : AC220V 5A

Protection Class : IP57

Machine weight : 60Kg

Machine size : W500 * D420 * H760mm

Lifting platform stroke : 60mm

Test speed : 0-300 times/min

Strike force : 0-500gf adjustable

Test head stroke : 0-20mm

Counter digits : 8 bits

Test products count : 3PCS

Test speed range : 0-120 optional

Shutdown delay : 8 seconds

Test axis : Three-axis

Test types : Durability and conduction

Contact Now

Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine

Use

The machine is suitable for key switch, computer keyboard, conductive rubber, metal shrapnel key (commonly known as pot) or the same type of life aging test, USES the advanced programmer life test process control buttons, can conduct life test and conducting tests at the same time, key damage automatic stop, always "conduction" or object to be tested is always "no conduction, the machine will stop running in 8 seconds

Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine

Equipment features:

1. Can simultaneously test the durability and conduction test of multiple groups of products;

2. High speed test, uniform speed, time to complete the test can be mastered;

3. The pressure can be adjusted to accurately control the strike force;

4. The number of strikes can be preset to stop at the preset value;

5. Intelligent shutdown function, always on or off, real-time monitoring

Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine

Technical parameters:

1. Number of products tested: 3PCS

2. Counter: 8 bits, which can be used to register power off

3. Stretching stroke of test head: 0-20mm

4. Test speed: 0-300 times/min (0-120 optional)

5. Strike switch contact force: 0-500gf adjustable

6. Lifting platform stroke: 60mm

7. Machine size: about W500 * D420 * H760mm

8. Machine weight: about 60Kg

9. Power supply: AC220V 5A

Three-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test MachineThree-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test MachineThree-axis Switch Key Life Tester Mobile Phone/Computer Key Life Testing Equipment Button Life Test Machine
