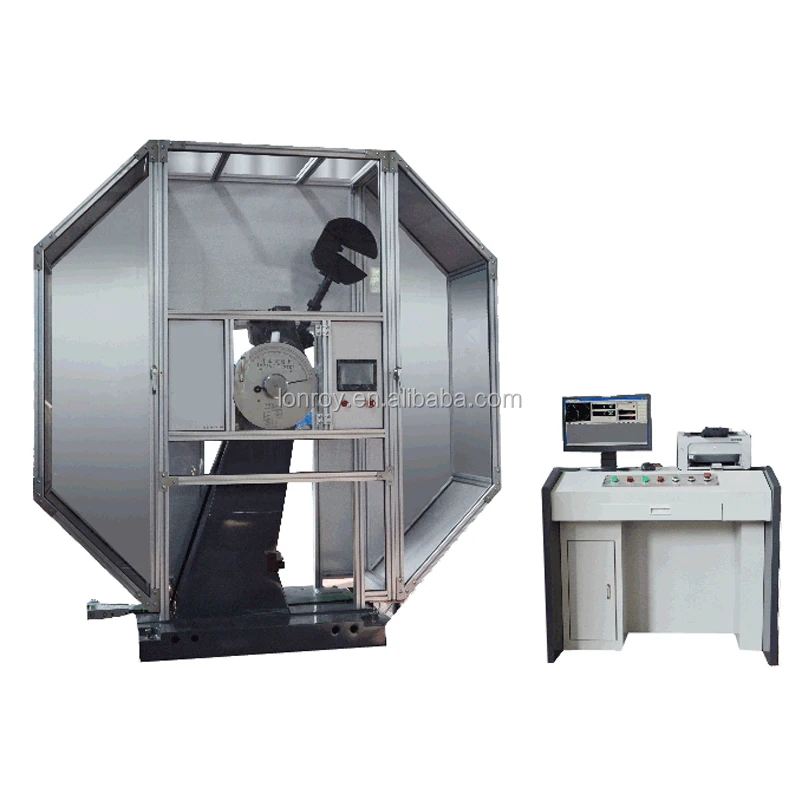

ASTM E23 ISO 148 Microcomputer Control Pendulum Impact Testing Machine Factory Price
1
2
3
4
5
6
Brand Name :LONROY
Place of Origin :Guangdong, China
MOQ :1
Maximum impact energy :750 J
Effective range :20%-80% FS
Prelift Angle :150°
Axis distance :750 mm
Impact energy :535.8985 N
Moment of pendulum :401.9239 N*m
Impact speed :5.24 m/s
Anvil block span :40 mm
Anvil block slope :11°±1°
Impact blade angle :30°±1°
Impact blade radius :2 mm
Angle accuracy :0.06°
Power rate :1.5 kW
Host weight :1500 Kg
Electric cabinet weight :100 Kg
Contact Now
ASTM E23 ISO 148 Microcomputer Control Pendulum Impact Testing Machine Factory Price
Functions and USES:
This series of impact testing machine is a high stiffness main engine, microcomputer control, automatic measurement record of the test machine, is the highest level of domestic pendulum impact testing machine.
This series of impact test machine is designed and manufactured according to ISO 148:1998, GB/T 3808-2010 test of pendulum impact test machine.Fully meet the domestic and international standards for impact testing of metallic materials.
This series of impact testing machine has passed the inspection and verification of various standard impact test samples at home and abroad, participated in and passed the international comparison test of impact test, obtained the European Union CE certification, passed the inspection certification of national testing machine quality supervision and inspection center, and passed the inspection of shandong institute of metrology.
This series of impact testing machine has powerful function, stable and reliable, accurate test and convenient operation.It is an ideal test equipment to test the impact resistance of metal materials under dynamic load and to judge the toughness and brittleness of materials.
This series of impact testing machine can be widely used in scientific research institutes, testing institutions, universities and colleges, aerospace, industry, metallurgy, machinery manufacturing, pressure containers, ships, vehicles, Bridges, wind power and other fields.it precision of materials research, material analysis, materials development, material selection, process improvement and quality control.
ASTM E23 ISO 148 Microcomputer Control Pendulum Impact Testing Machine Factory Price
Technical specification:
(1)Host and attached parameters:
Item
JBW-750C
Maximum impact energy(J)
750
Effective range
20%-80%FS
Prelift Angle of pendulum
150°
The distance from the axis to the center of the blow
750mm
(2)Machine specification
Item
JBW-750C
Impact energy N
535.8985
Moment of pendulum N·m
401.9239
Impact speed
5.24m/s
Anvil block span
40mm
Corner radius of anvil holder
R1-1.5mm
Slope Angle of anvil block
11°±1°
Impact blade Angle
30°±1°
Impact blade
Curvature
radius
2mm Impact blade
2mm-2.5mm
8mm Impact blade
8mm±0.05mm
8mm
Radius of Angle of impact blade and shoulder
0.1mm-1mm
8mm
Impact edge width
4mm ±0.05mm
Impact edge width
10mm-18mm
Impact edge thinkness
16mm
Meet sample specifications(mm)
10×10×55mm,10×7.5×55mm,
10×5×55mm, 10×2.5×55mm
(3)The measured parameters:
Item
JBW-750C
Angle measurement method
Photoelectric encoder
Angle accuracy
0.06°
Digital display Angle resolution
0.015°
Digital display power resolution
0.12J
Minimum resolution of the dial
≥1.25J
Energy display mode
Dial, LCD, microcomputer
(4)Total machine specification:
Item
JBW-750C
Out size
Host
Install Grid guard 2220×900 ×2220(L×W×H)mm
Electric cabinet
960×620×830(L×W×H)mm
Weight
Host
About 1500Kg
Electric cabinet
About 100Kg
Rate of power
1.5kW
Power
3phase 5 wires,380V±10%,50Hz
Use environment
No vibration, no dust;Room temperature(15-25℃);Humidity<70%
Microcomputer Control Pendulum Impact Testing Machine
